Assessment of nasal patency after rhinoplasty through the Glatzel mirror
Author(s):
Victor Diniz de Pochat1, Nivaldo Alonso2, Rogério Rafael da Silva Mendes3, Paula Rocha Gravina4, Eduardo Valente Cronenberg5, José Valber Lima Meneses6
Key words:
evaluation, rhinoplasty, respiration.
Abstract:

Introduction: Objective evaluation of nasal function is a constant challenge for plastic surgeons, otolaryngologists, and allergists. The modified Glatzel mirror can evaluate nasal expiratory flow; however, there is little information on this method and its use in the measurement of nasal patency after surgical procedures. Objective: To compare, in a prospective study, the functional results before and after cosmetic rhinoplasty and evaluate the use of the Glatzel mirror as an objective method to assess nasal patency. Methods: To achieve this objective, we analyzed the functional results of surgery through a subjective questionnaire and objective evaluation through a modified Glatzel mirror, and evaluated the correlation between the 2 methods. Twenty patients (14 women and 6 men) underwent aesthetic rhinoplasty using spreader grafts. Pre- and postoperative evaluation (90-120 days) included a respiratory quality score (subjective) and modified Glatzel mirror test (objective). Subsequently, the Spearman test was used to compare the pre- and postoperative subjective and objective data. Results: The subjective evaluation demonstrated a statistical difference between pre- and postoperative scores (8 ± 2 and 9.4 ± 0.7, P< 0.001). There was no statistical difference in mean nasal patency by modified Glatzel mirror. No statistically significant correlation was observed when comparing the modified Glatzel mirror values with the subjective scores reported by patients pre- or postoperatively. Conclusion: The Glatzel method lacks sensitivity in detecting patient-reported improvements in breathing following rhinoplasty. This suggests that the method is a poor assessment tool to detect small, post-surgical changes in the nasal airways.

INTRODUCTION

To measure nasal function objectively is a constant challenge for plastic surgeons, otolaryngologists, speech pathologists, physiologists, and allergists (1, 2). The patient's perception is important, but does not define the degree of obstruction or the degree of improvement after a certain treatment. Among the methods currently available for evaluation of respiratory function, the most common are computed rhinomanometry and acoustic rhinometry (3). Breathing can also be measured by using the nasal Glatzel mirror or the Altmann graph mirror, widely used by speech therapists in the evaluation of nasal airflow (4,5). The modified Glatzel mirror (Altmann graph mirror) enables evaluation of the nasal expiratory flow, and is used to analyze changes in nasal ventilation in patients undergoing certain therapies or changing habits (4-6). The use of spreader grafts as "spacers" between the dorsal cartilaginous septum and upper lateral cartilage is a well-established method for the correction or prevention of internal nasal valve failure during rhinoplasty (7,8); however, there is little information in the literature about the modified Glatzel mirror and its use in the objective measurement of nasal patency after surgical procedures.

The objective of this study was to compare the functional results before and after cosmetic rhinoplasty and evaluate the use of the modified Glatzel mirror as an objective method to assess nasal patency. To this end, we analyzed the functional results of surgery through a subjective questionnaire and with the modified Glatzel mirror, and evaluated the correlation between the 2 methods.


METHOD

Subjects

This prospective clinical study was approved by the Ethics and Research Committees of the University of São Paulo and the Federal University of Bahia, and was conducted between September 2009 and December 2010. The sample consisted of 20 consecutive healthy patients (14 women and 6 men) who were scheduled to undergo cosmetic rhinoplasty (with or without associated functional complaints). Patients with racial and ethnic characteristics (blacks and Asians) and history of nasal trauma, nasal surgery, smoking, and medical co-morbidities (cancer, hypertension, diabetes mellitus, and renal, pulmonary, cardiac, or hepatic conditions) were excluded.

Evaluation

All patients underwent a pre- and postoperative (90-120 days after the procedure) evaluation. The subjective evaluation was conducted through a questionnaire in which each patient scored their breathing quality with a respiratory score of 1 (poor) to 10 (excellent). The patients were not told their previous score at the time of the postoperative evaluation to avoid influencing the results. Nasal patency was assessed objectively through the modified Glatzel mirror by a single examiner (first author). Expiratory flow was measured by marking the halo (condensate flow) on the mirror projector with a pen. This mirror consisted of a metal plate, marked in millimeters, with a flat side and another side with a recessed groove for the nose. Patients sat with their heads positioned vertically, and first performed forced expirations through each nostril, and then they were asked to exhale normally with the mouth closed. The halo of condensation obtained after normal expiration was marked with a ballpoint pen and then transferred to a reference card marked in millimeters.

Irregular markings on the mirror caused by nasal aeration were quantified in square centimeters (cm2) (Figure 1), recorded separately for the left and right side, and analyzed with UTHSCSA Image Tool for Windows version 3.0 (San Antonio, TX, USA) (9). To account for variability in ambient conditions, measurements of temperature and humidity were obtained for all patients at the time of examination. The temperature range was 25-27.8 oC, and humidity was 57-67%.

Surgical technique

All patients were operated on under general anesthesia and local anesthesia with lidocaine infiltration (0.5%) and epinephrine (1:80,000), and a single surgeon (first author) performed all surgeries. The technique employed was similar in all cases, using the open rhinoplasty approach and spreader grafts between the upper lateral cartilage and the septum. Aesthetic deformities were treated according to the individual needs of each patient. Osteotomies were performed in 16 patients (80%).

Data analysis

Nonparametric tests were used for statistical analysis. The Kolmogorov-Smirnov test was used to assess whether the data assumed a normal distribution. After verifying that conditions of normality were not met, the Wilcoxon test was used. The Spearman correlation test was used to compare the pre- and postoperative subjective and objective data. Statistical analysis was performed using SPSS version 13.0, and graphs and tables were created in Microsoft Excel and Word 2007. A significance level of <0.05 was set for all analysis.


RESULTS

Patient follow-up ranged 5-15 months. Analysis of the subjective sensation of nasal patency revealed statistical significance (Table 1). While the subjective sensation of patency was improved in 70% of patients, there was no change in the quality of breathing in the remaining 30%. There was no statistical difference between pre- and postoperative or left and right mean nasal patency by the modified Glatzel mirror (Table 2). No statistically significant correlation was observed when comparing modified Glatzel mirror values with patient-reported scores during the subjective evaluation, either in pre- or postoperative assessments (Table 3).



Figure 1. Geometric formation obtained through expiration (blue); vertical line (black) created to separate left and right sides.




DISCUSSION

The ideal rhinoplasty includes preservation or improvement of respiratory function. The data from this study revealed significant improvement in subjective breathing after open rhinoplasty with the use of spreader grafts. Several methods have been developed to assess nasal flow patency objectively. The clinical benefit of objective airway assessment is clear, as it permits better diagnosis, treatment monitoring, and scientific and legal documentation (10). The modified Glatzel mirror method is often used in clinical practice and has the advantage of being reproducible, rapid, non-invasive, inexpensive, and does not require special training.

DEGAN and PUPPIN RONTANI (4) demonstrated increased nasal aeration after orofacial myofunctional therapy, comparing the condensation area on the mirror before and after treatment. MELO et al. (11) reported an increase in nasal aeration after massage and nasal cleansing; however, BASSI et al. (6) suggested that the use of the mirror as a nasal patency assessment method should be restricted to surgical patients and those with allergies.

In the present study, there was no statistical significance between pre- and postoperative measurements using the modified Glatzel method. Despite being easy to perform, the degree of reliability and reproducibility in the evaluation of nasal airflow when using this method has not been well established, and medical reports referring to it in the literature differ (12-15). Other studies have suggested that there are factors related to the sensation of nasal patency not necessarily linked to the flow of air (15, 16). Factors such as examiner technique, instrument characteristics, and changes in shape and size of the airway (nose) can interfere with results (17). With regard to examiner technique, the same examiner (first author) was responsible for all measurements, taking into account manufacturer recommendations and standardizing protocols to reduce the variability of the results. As for limitations of the instrument (mirror), it is unable to regulate the flow of condensation, which results in measurement error in seconds. Increasing the number of measurements to 3 or 5 could reduce this bias. Variation in study subjects and anatomic differences in the nasal airway among them are beyond the investigator's control. Another explanation for the variability of the results may be related to the nasal cycle. The nasal cycle may be defined as a periodic alternation of congestion and secretion from the nasal cavity, which changes the feeling of nasal patency and nasal resistance to the flow of air (18). While one nostril is congested, reducing its seromucous gland secretion, the other unblocks and increases its glandular secretion. This mechanism is regulated by a balance alternating between sympathetic and parasympathetic systems and by different chemical mediators. The nasal cycle can be observed in most individuals without respiratory disease, lasting from as short as 30 minutes to more than 7 hours. This cycle is influenced by several factors, including environmental conditions, body position, age, presence of nasal disorders, and emotional and hormonal stimuli.

The examinations were performed in the same physical space by the same examiner under similar temperature and humidity conditions. Despite the routine employed, it was not possible to control emotional and hormonal stimuli, or even quantify the duration of the nasal cycle of each patient. In the medical literature, there is no description of values considered normal for the area of condensation on the modified Glatzel mirror. Moreover, most studies only included children, making it difficult to compare previously published results with that of the present study. The correlation between nasal airflow and subjective sensation of nasal patency has been studied extensively with several methods, leading to divergent results. WATSON et al. (12) suggested that children are insensitive to subjective assessment of nasal patency, while FISHER et al. (19) demonstrated that the nasal cycle pattern of children is similar to that of adults. On the other hand, other authors have demonstrated a poor correlation between the sensation of nasal obstruction and nasal resistance in adults, both by objective measurement and rhinometry (13). FAIRLEY et al. (20) obtained good correlation between subjective and objective assessments. This study involved only 5 subjects with multiple measurements; thus, we obtained a linear regression curve for each subject, allowing individual examination. The general assessment of all subjects would lead to an incorrectly low correlation, as each individual has his own calibration curve. Studies conducted with individuals who have physiologically increased nasal resistance have also demonstrated significant correlation (21, 22).



Note: Nonparametric Wilcoxon test, p (pre x post) = 0.001, statistically significant.
n = absolute number, SD = standard deviation.

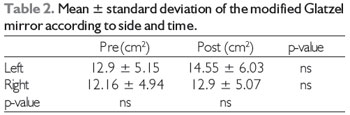

Note: Nonparametric Wilcoxon test, statistically significant p-value < 0.05.
Pre = preoperative, Post = postoperative.

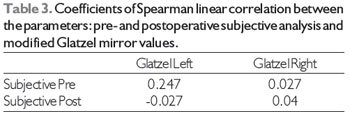

* Correlation significant to 0.01.
Subjective analysis before x Glatzel mirror (right and left) before, no significant correlation.
Subjective analysis after x Glatzel mirror (right and left) after, no significant correlation.




CONCLUSION

The Glatzel method lacks sensitivity in detecting patient-reported improvements in breathing following rhinoplasty. This suggests that the method is a poor assessment tool to detect small, post-surgical changes in the nasal airway.
