Evaluation of Bismuth Subgalate in Nasal Packing after Nasal Surgery
Avaliação do Emprego do Subgalato de Bismuto no Tamponamento Nasal Anterior após Cirurgia Nasal
Lucas Gomes Patrocínio*, Joslei dos Santos Paro**, José Antônio Patrocínio***.
Key words:
turbinectomy, septoplasty, nasal packing, bismuth subgalate.

Introduction: For nasal surgery, packing with gauze is the classic method used for bleeding control. The application of bismuth subgalate as an haemostatic agent was already demonstrated in several experimental studies and in adenotonsillectomy. Its employment as haemostatic agent in the nose was not still demonstrated in the literature. Objective: To evaluate the employment of bismuth subgalate in nasal packing after nasal surgery, comparing the postoperative evolution in relation to bleeding and possible complications, with 30 days follow up. Methods: Eighteen patients consecutively assisted with diagnosis of nasal septum deviation and chronic hypertrophy rhinitis were submitted to surgery. The employment of bismuth subgalate in the packing was randomized for each nasal fossa of each patient. They were evaluated with 0, 1, 7, 14, and 30 days of follow up, in relation to the clinical sings and symptoms (pain, ardencies, itch, epiphora, epistaxis, hyposmia, nasal obstruction) and to anterior rhinoscopy (edema, crusts, synechia) by another otolaryngologist ("blind"). Results: In the postoperative comparison, there was prevalence of the following subjective complaints in the nasal fossa in which bismuth subgalate was used: pain, itch, edema, obstruction, crusts and synechia (with statistical significance in the last three ones). There was no difference in relationship to the bleeding after the retreat of the packing. Conclusion: The employment of bismuth subgalate in anterior nasal packing after nasal surgery, in 30 days of follow-up, presented more complications, without increasing the benefit, hence being discouraged its use.


Post-surgery bleeding is one of the most feared complications on otorhinolaryngology surgery procedures and, probably, it might be the main cause of urgency assistance after surgery (1).

Adenotonsillectomy and septoplasty associated to bilateral inferior parcial turbinectomy are the most common surgeries made by ENT doctors nowadays (2). They present high satisfactory results, though they can also present bleeding as serious complication post-surgery period.

The application of bismuth subgalate as hemostatic agent has already been demonstrated in several experimental studies and on aenotonsillectomy surgery (3,4). For nasal surgery, nasal packing with gauze is a classic method used for bleeding controll (1,5).

Therefore, we have evaluated the use of bismuth subgalate on anterior nasal packing after nasal surgery, comparing post-surgery evolution in relation to for bleeding and possible complications, with 30 days of follow-up.



In September 2001, 18 patients underwent operation and were assisted consecutively at Serviço de Otorrinolaringologia da Universidade Federal de Uberlândia with diagnosis of nasal septal deviation and hypertrophic chronic rhinitis. The inclusion criteria were: chronic nasal obstruction, lack of previous nasal surgical treatment, non-satisfactory exaustive clinical treatment, free rhinopharynx. The exclusion criteria were: nasal polyp, adenoid hypertrophy, nasal-sinusal and nasal-pharynx tumors.


During pre-surgery appointment, the patient was examined by an ENT doctor, who analyzed the clinical history and made otorhinolaryngology physical exam and nasofibroscopy.

The surgery (septoplasty associated to bilateral inferior parcial turbinectomy) was done with anterior nasal packing placement for 24 hours. In one of the nasal cavities, it was placed a packing without bismuth subgalate.

The patient was evaluated during 0, 1, 7, 14 and 30 days after surgery (PS - post-surgery), according to clinical conditions (pain, ardencies, itching, epiphora, epistaxis, hyposmia, nasal obstruction) and to anterior rhinoscopy (eodema, crusts, synechia) by another ENT doctor, who was not aware of which nasal cavity the packing with bismuth subgalate was applied in.

Surgical Technique

All surgical procedures were done under local anaesthesia: sedation and analgesia; topic anaesthesia with tetracaine 2% + oxyetazoline 0.5%; extravascular anaesthesia infiltration with bupivacaine 0.5% + epinephrine 1:80.000 on the infra-orbital foramen, internal corner of the eye, nasal vestibule, ethmoidal ceiling and by along the septum of the nose and inferior nasal concha (6).

Septoplasty was done in floowing way: exposure of the caudal area of quadrangular cartilage with the aid of nasal speculum at concave side of deviation; incision of preseptal mucosa; submuco¬pericondral displacement; removal of quadrangular cartilage lamina which is perpendicular to the floor measuring about from 2 to 3mm of length at floor level and 1mm on nasal ceiling, where maximum deflection of deviation ocurred; removal of other quadrangular cartilage laminas if needed; removal of osseous-cartilaginous spur with chisel of 3mm; removal of part of perpendicular lamina of ethmoid which was deviated; suture with simple catgute 4-0 (7).

Inferior parcial turbinectomy was done in following way: parcial marking and division in a longitudinal way of inferior nasal concha using Knight scissors; removal of the divided portion (including head, body and stem) with Takahashi tweezers; electrical cauterization on bleeding area with high frequency; lateral breaking of the remaing portion of the inferior nasal concha (2).

After surgical procedure, anterior nasal packing was done for 24 hours with gauze and neomicyn cream. Bismuth subgalate was associated on packing from one nasal cavity.

Statistical Analysis

In order to verify statistical significance between the two surgical methods, it was done 2 test or accurate Fisher test. It was considered statistically significant when p<0.05.

Esthetic Aspects

The Ethics Committee from our institution approved this study. All patients signed a clear and well-informed authorization.


18 patients underwent surgery. 9 of them (50.0%) were female and the other 9 (50.0%) were male, all aging from 15 to 48 year (with average of 28. 7 years).

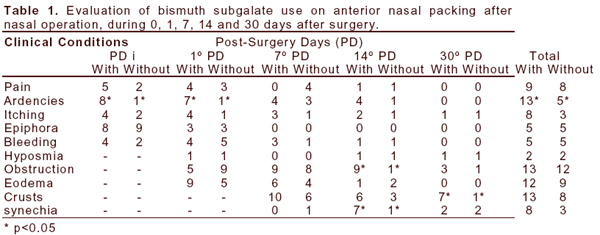

On post-surgery comparison, there was a predominace of subjetive complaint by the patients over nasal cavity on which bismuth subgalate was placed on nasal packing under the following symptoms: pain, itching, obstruction (with statistical predominance on 14º PS - post-surgery period) and ardencies (with statistical predominance on imediate PS, 1º PS and on general total of evaluations). There was no difference in relation to PS bleeding anterior packing removal (Table 1).

In relation to subjetive evaluation by the ENT doctor, over the nasal cavity in which bismuth subgalate was applied, there was a greater incidency of oedema, crusts (with statistical predominance on 30º PS) and synechia (with statistical predominance on 14º PS) (Table 1).


Bilateral parcial turbinectomy surgery of the inferior nasal conchas is very common nowadays in Otorhinolaryngology routine. Its eficacy and safety have been showed by several studies (2,8-11). It can be recommended as an isolated procedure or associated to other surgeries in different diseases of nasal cavity, especially on those of obstructive feature. It also presents post-surgery bleeding, infections, crusts, synechia and pains as more frequent comlications (2,12).

Nasal packing, nasal splint, Gelfoam®, Merogel®, etc (8-13) have benn described in the literature as techniques with the purpose of improving post-surgery recover and reducing or avoiding such complication.

Bismuth subgalate is heavy unsolvable, poor absorption and high astringent capacity metal (3). According to the studies by THOKIDOTTIK AND COL (14), it was demonstrated that this metal works on coagulation cascade, through extrinsic pathway, more specific on factor XII, causing, thus, acceleration on hemostatic activity. Beside this evidence, it is believed in its astringent effect over bloody area. Neither side nor toxic effect has been described in the literature as hemostatic agent. (15).

In other studies' authors, in relation to the effectiveness of surgical method and percentage of post-surgery bleeding, it was demonstrated by MANIGLIA AND COL (1989) the extreme efectiviness of bismuth subgalate as a coadjuvant agent on adenotonsilectomy, reaching a rate of 0.28% of bleeding in the post-surgery period, in a total of 1.428 cases (3). In one of the studies by MOLINA AND COL (2000), the rate in the post-surgery period was 0.33% in a total of 307 cases. This was satisfactory compared in the literature (16).

The use of bismuth subgalate on the nose as a hemostatic agent had not already been described in the literature. Different nasal packings and chemical substances were described and applied during post-surgery period of nasal operation: gauze soaked in furacin (17), paraffin or gauze with vaseline (18), gauze with creams and antibiotics (19), internal "splints" which support fractures of nose bones (20), combination of an internal and external holder, through transcutaneous fixation (21), plastic mould of serum bolttle (1), and others.

In this study, although there was a low number of patient, we have seen an increase of complications such as crusts, synechia and oedema, pain complaints, itching and obstruction when applying bismuth subgalate. In statistic evaluation, the presence of ardencies, obstrution, crusts and synechia was higher when bismuth subgalate was used (p<0.05).

At the same time, the use of bismuth subgalate did not alter the incidence of post-surgery bleeding after anterior packing removal. So, there was no benefit when applying this chemical agent.

The effectiveness of bismuth subgalate as a hemostatic agent had already been questioned by some authors, especially HATTON (2000), who demonstrated that all works in which this agent was efficacious, there was an association of epinephrine in its preparation (22). In this study, we have not use epinephrine when preparing bismuth subgalate.

The use of anterior nasal packing after nasal operations is not part of our routine. We have restricted its use only for cases of posterior and/or anterior epistaxis when a patient does not present clinical conditions in order to be submitted to ligation/cauterization surgery of bleeding vessel. Therefore, many ENT doctors support the use of packing after surgery. So, this work is important to demonstrate the deleterious effect of bismuth subgalate and, thus, discourage its use.

Despite the experimented technological advances by Otorhinolaryngology since the first exams up to surgical treatment, it has not been able to establish safe and efficacious procedures in order to prevent hemorrhage, synechia and crusts after surgery of inferior nasal conchas, representing main the complications after surgeries (2).


The comparision between bismuth subgalate use on anterior nasal packing after nasal operation demonstrated an increase on pain, itching and obstruction and complications as crusts, synechia and oedema, and, at the same time, did not raise alterations on post-surgery bleeding incidence.

We concluded that the use of bismuth subgalate on anterior nasal packing after nasal operation, in 30 days of follow-up, presented more complications, without increasing its benefit, though its use was discouraged.


1. Patrocínio JA, Watanabe CM, Patrocínio LG. Tamponamento nasal anterior em turbinectomia parcial inferior: um novo método. Arq Otorrinolaringol, 2004, 8(4):270-4.

2. Patrocínio JA, Patrocínio LG, Paro JS, Alvarenga HA, Amaral PM, Reinhart RJY. Turbinectomia parcial inferior versus cauterização submucosa para hipertrofia da concha nasal inferior. Arq Otorrinolaringol, 2003, 7(3):225-30.

3. Maniglia AJ. Adenotonsillectomy: a safe outpatient procedure. Arch Otolaryngol Head Neck Surg, 1989, 115:92-4.

4. Nassif ACN, Patrocínio JA. O subgalato de bismuto nas amigdalectomias. RBM, 1978, 35(8):505-6.

5. Cortiss EH. Diagnosis and treatment of nasal airway obstruction due to inferior turbinate hypertrophy. Clin Plast Surg, 1988, 15(1): 1-3.

6. Patrocínio JA, Patrocínio LG, Ramin SL, Souza DD, Maniglia JV, Maniglia AJ. Anestesia. In: Maniglia AJ, Maniglia JJ, Maniglia JV (editores). Rinoplastia: estética, funcional e reconstrutora. Rio de Janeiro: Revinter; 2001, p. 62-8.

7. Mocellin M, Patrocínio JA. Septoplastia; Técnica de Metzembaum. Rev Bras Otorrinolaringol, 1990, 56:105-10.

8. Elwany S, Harrison R. Inferior turbinectomy: comparison of four techniques. J Laryngol Otol, 1990, 104:206-9.

9. Ophir D, Schindel D, Halperin D, Marshak G. Long-term follow-up of the effectiveness and safety of inferior turbinectomy. Plast Reconstr Surg, 1992, 90:980-7.

10. Fradis M, Golz A, Danino J. Inferior turbinectomy versus submucosal diathermy for inferior turbinate hypertrophy. Ann Otol Rhinol Laryngol, 2000, 109:1040-5.

11. Rakover Y, Rosen G. A comparison of partial inferior turbinectomy and cryosurgery for hypertrophic inferior turbinates. J Laryngol Otol, 1996, 110:732-5.

12. Hol MKS, Huizing EH. Treatment of inferior turbinate pathology: a review and critical evaluation of the different techniques. Rhinology, 2000, 38:157-66.

13. Patrocínio JA, Amaral PM, Garrote FIG, Reinhart RY, Patrocínio LG. Eficácia do ácido hialurônico (Merogel) na turbinectomia parcial inferior. Arq Otorrinolaringol, 2002, 6(3):211-4.

14. Thorisdottir H, Ratnoff O, Maniglia A. Activation of Hageman factor (Factor XII) by bismuth subgallate, a hemostatic agent. J Lab Clin Med, 1998, 112:481-6.

15. Lowe DL. Adverse Effects of Bismuth Subgallate: A further report from the Australian Drug Evaluation Committee. Med J Aust, 1974, 2:664-6.

16. Molina FD, Maniglia JV, Magalhães FP, Dafico SR, Rezende RS. A eficácia do subgalato de bismuto em tonsilectomias como agente hemostático. Rev Bras Otorrinolaringol, 2000, 66(3):194-7.

17. Loré JM. Atlas of Head and Neck Surgery. Philadelphia: Saunders Company; 1962.

18. Schultz LW. Nasal splints. Advantages, disadvantages and author's modifications. Am J Surg, 1957, 94: 897-9.

19. Huizing EH, Pirsig W, Wentges R, Hellmich S, Kern E, Olphen A. Unanimity and diversity in nasal surgery. Rhinology, 1989, 9:15-23.

20. Oldfield MC. Splints for fractured noses. Br Med J, 1947, 1:255.

21. Maliniac JW. The role of the septum in rhinoplasty. Arch Otolaryngol, 1948, 48:189-201.

22. Hatton RC. Bismuth subgallate epinephrine post in adeno-tonsillectomies. Ann Pharmacother, 2000, 34(4):522-5.
