Proposal for Determination of Vocal Fold Nodules Position
Proposta de Determinao da Posio de Ndulos de Pregas Vocais
Alcides Floriani1, Evaldo Dacheux Macedo Filho2, Rosane Sampaiuo Santos3, Ari Leon Jurkiewicz4
Key words:
Vocal nodules. Vocal fold. Position.

Introduction: Current descriptions of vocal fold nodules are not standartized. Propose: Here we propose a standard description of these nodules based on endoscopic observations. Study Design: Clinic retrospective. Material and Method: Retrospective study of 86 medical registers of patients of both sexes (71 males and 15 females) between six months and 11 years old, with dysphonia and having vocal fold nodules, in the sector of endoscopies at Nossa Senhora das Graas Hospital, in Curitiba, in the period from March to July 2002. The document photografy endoscope, the phonatory portion of the abducted vocal folds was delimited interweaving the corresponding points to the anterior commissure and the vocal process, from wich an isosceles triangle is obtained. By dividing this triangle in equal parts resulted the anterior, medium and posterior thirds. The medium third was divided and the medium-anterior and medium-posterior were delimited. Result: From the 86 patients, the greatest incidence occurred in males from ages 5 to 6 years old. The location of nodules was more frequent in the anterior third of the vocal fold, regardless of sex, and in at the ages 5 to 6 years old.


Secondary organic lesions, often induced by phonotrauma, are nodules of the vocal folds responsible for many of the alterations on vocal folds(1).

The low rate of glottic proportion as well as tissue features predispose laryngeal spasm and nodule formation more easily in children than in adults(4,6,8,11).

Up to the current moment, the position of the vocal nodules is not precisely defined. Interpretations regarding the situation of the vocal fold are taken by subjective experience.

The target of this study is to establish a system to delimit vocal nodules through endoscopy exam, finding them through a geometric outline.


Volunteers were informed and requested for the research and after having accepted they signed the Free and Clear Consent Term. This research was submitted to the Institutional Review Boards - Universidade Tuiuti - Paran. Of. CEP-UTP n 066/2004 (approval protocol). All subjects involved agreed on the research and its result divulgation according to Resoluo 196/96 (BRASIL. Resoluo MS/CNS/CNEP n. 196/96 de 10 de outubro de 1996.

This study was based on retrospective records from the Setor de Endoscopia do Hospital Nossa Senhora das Graas - Curitiba (Endoscopic Department) from March to July 2002.

It was chosen 86 children, 71 males and 15 females, aging from 6 months to 11 years old, with dysphonia with nodules of vocal folds.

Nodules were analyzed regarding gender, dividing material in the following ages: younger than 3 years old(5), from 3 to 4 years(21), from 5 to 6(33), from 7 to 8(22) and over 9 years old(5).

The inclusion criteria were children with vocal nodules and the exclusion one was the presence of associated laryngeal lesions.

The equipment used lists the following pieces: Mashida, ENT30TIII; a 70 laryngoscopy telescope optics, Nagashima Co. (Japan), IK-M4YIA; two VHS four heads, Victor Co. - Japan (JVC), HRJ416M; Video Monitor, Sony - Amaznia Ltda (Brasil), KV-144IB; Panasonic Printing (Matsushita Eletric Industry Co. Ltd. - Japan), AG-EP-P; stroboscopic light force 200W, Bruel-Kjael Co. Denmark, 4914; Character generator - Victor Company - Japan (JVC), CG-V60U; audio amplifier, Cygnus (Cygnbus do Brasil), AC-200. Patients were submitted to inhaling and topic anesthesia on the with lidocaine 2%.";

Regarding the photos, considering abducted vocal folds with the help of the digital pakimeter Digimatic - 500, Mitutoyo, when connected to corresponding points to anterior commissure (A) and vocal processes (BC), it was obtained a picture of a isosceles triangle (ABC) according to Pictures 1 and 2.

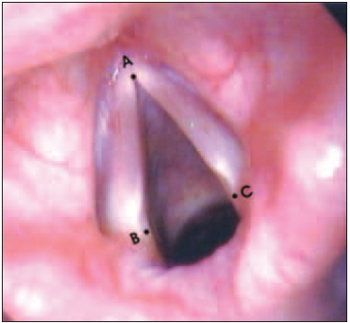

Picture 1. Normal vocal folds - A - Anterior commissure. B and C - vocal processes. AB and AC - inter-membrane space or phonatory portion of the vocal fold.

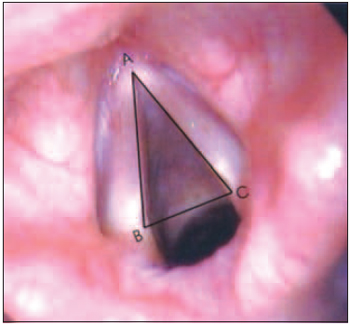

Picture 2. Normal vocal folds with delimitation of phnatory portion (Isoceles Triangle ABC). By dividing the sides AB and AC in three parts equally and joining the corresponding points to those divisions by line segments, it is possible to obtain: anterior third (AB2C2), middle third (B1B2C2C1) and posterior third (BB1C1C) of the isosceles triangle ABC, according to picture 3.

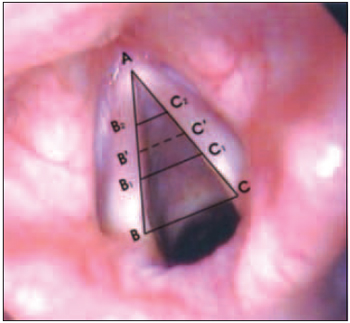

Picture 3. Anterior, middle and posterior thirds of the phonatory portion of the vocal folds. AB2C2 - Anterior third. B1B2C2C1 - middle third. BB1C1C - posterior third. By dividing middle third (B1B2C2C1) through line segment B'C', it obtains anterior-posterior thirds (B'B2C2C') and middle-posterior (B1B'C'C1), according to picture 4.

Picture 4. Middle-anterior (B'B2C2C') and middle-posterior thirds of the middle third (B1B2C2C1) of the phonatory portion of the vocal folds. B'B2C2C'- middle-anterior third. B1B'C'C1 - middle-posterior third.


The results of this study are shown in charts and tables.

Chart 1 presents percentages regarding localization of nodules on vocal folds, where it is possible to assure that such location was more frequent on the anterior third of the vocal fold, regardless gender.

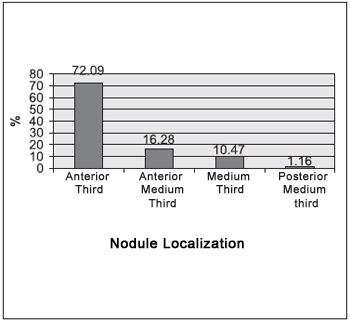

Chart 1. Sample regarding nodule localization.

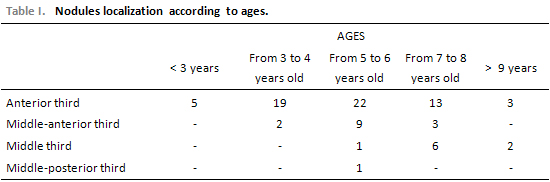

Table 1 shows that the incidence of nodule localization of the vocal folds occurred in the ages from 5 to 6.

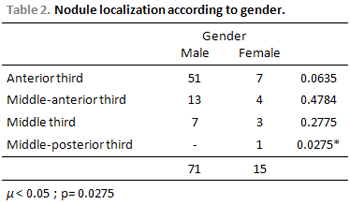

Table 2 shows data of nodule localization regarding gender with expressive result on the middle-posterior third of the vocal fold for females.


In excised larynges one studied the relation between inter-membrane space (phonatory portion) of the glottis and inter-cartilage space (respiratory portion) of the vocal folds, confirming its variation regarding gender and age(7).

Through equivalent relation between those two parts inter-membrane space and inter-cartilage space, it was described the criteria for obtaining glottic proportion (GP)(11), from videolaryngoscopy exam images performed during comfortable inspiration in adult patients.

Parameters such as subdivision of the inter-membrane space of the vocal fold in segments which able a systematization of the anatomical localization of the nodules on the vocal fold were not established. In the current study, nodules on the anterior third of the vocal folds prevailed.

Patients of all ages presented nodules regarding the anterior third of the vocal fold, though higher incidence occurred in patients aging from 5 to 6 years, moreover, the nodules were present in all thirds of the vocal folds (Table 1).

The highest incidence of nodules on the anterior third of the vocal fold occurred in both males and females, followed by middle-anterior third and middle-posterior third in a declining sequence.

Some authors refer other places of nodules, i.e., in the transition of middle and anterior thirds of the membrane space of the vocal fold(2,3).

The presence of nodules on the anterior and middle thirds of the vocal fold was reported with no exact number of frequency in each(5,9). This study becomes original by the lack of data or information in the literature, by the used detailed parameters and by the exclusion of subjectivity regarding anatomical situation of the nodules.

The variation of the position of the nodules through this proposal answers the gaps in other studies.

This study tried to find a new systematization based on an objective analysis regarding localization of the vocal nodules, helping on locating them.


After analyzing and discussion over data, one might conclude that the highest incidence of nodules occurred in male patients aging from 5 to 6. Localization of nodules was more frequent in the anterior third of the vocal fold in patients aging from 5 to 6, regardless gender. The localization of nodules in the middle-posterior third of the vocal fold was expressive for females. There was higher incidence of small nodules in patients aging from 5 to 6 and from 7 to 8 both males and females. Edematous nodules were the most frequent ones especially in male patients from 5 to 6 yeas old. Bilateral nodules were the most frequent ones in males and females aging from 5 to 6 yeas old. Middle-posterior triangular gap was more frequent in patients aging from 7 to 8 for males and females. Glottic gap did not occurred in patients aging 3 years.This method of evaluation can allow its use to identify the correct position of other groups of lesion in vocal folds, such as polyps; cists, neoplasm and others.
